Low-cost, high speed wind speed & direction sensor manufactured by Gill.
Description WindSonic 75
The Gill WindSonic is a low-cost, high speed anemometer, which utilises Gill’s proven ultrasonic technology to provide wind speed and direction data via one serial or two analogue outputs. To confirm correct operation, outputs are transmitted together with an instrument status code.
With a robust, corrosion-free polycarbonate housing, this small, lightweight wind sensor is recommended for use in harsh environmental conditions and is particularly suited to marine & offshore (ships, data buoys) and land based installations. The WindSonic has no moving parts, offering maintenance-free operation in a wide range of applications.
Typical Applications WindSonic 75
- Remote weather monitoring stations
- Building controls
- Data buoys
- Marine vessels
- Small airports & helipads
- Road & rail tunnels
- Environmental field sites
- Ports & harbours
- Mobile weather monitoring vehicles
- Coastal weather monitoring stations
Key Features WindSonic 75
- Wind Speed & Direction Sensor
- 0 - 75 m/s (146 knots) Wind Speed
- 0 - 360º Wind Direction
- NMEA output
- Low Power consumption
- Fast start-up
- Solid-state – maintenance-free
- Corrosion Free

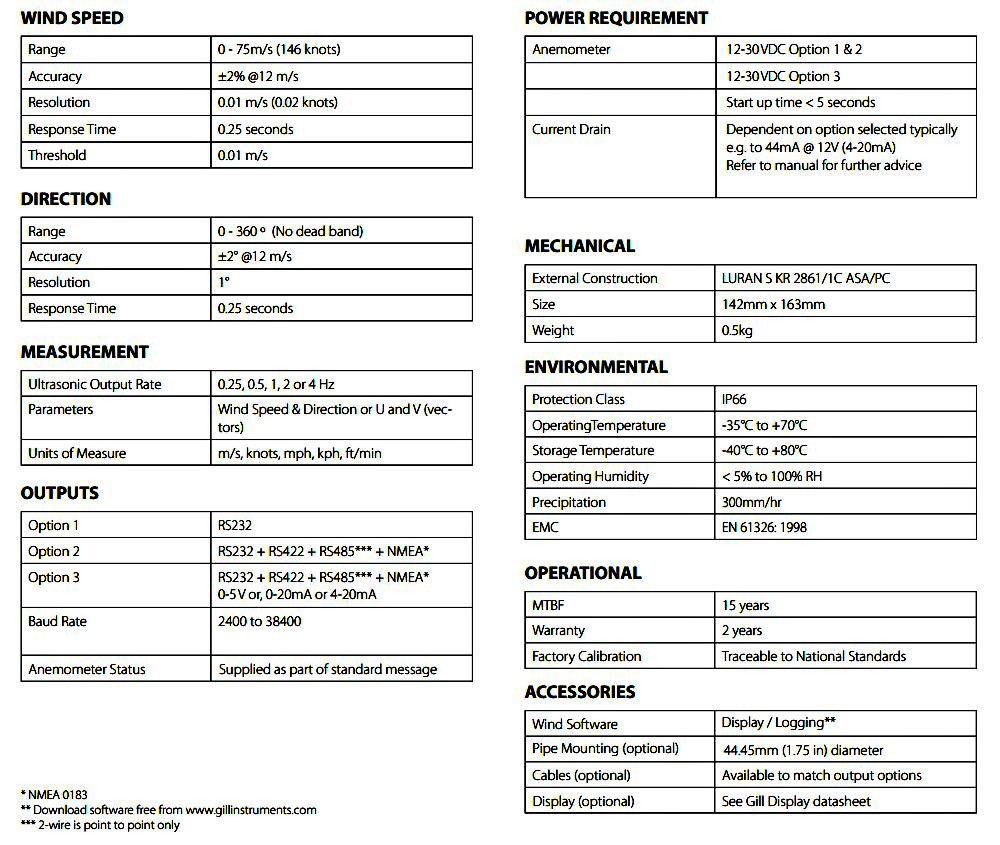

Specifications WindSonic 75
